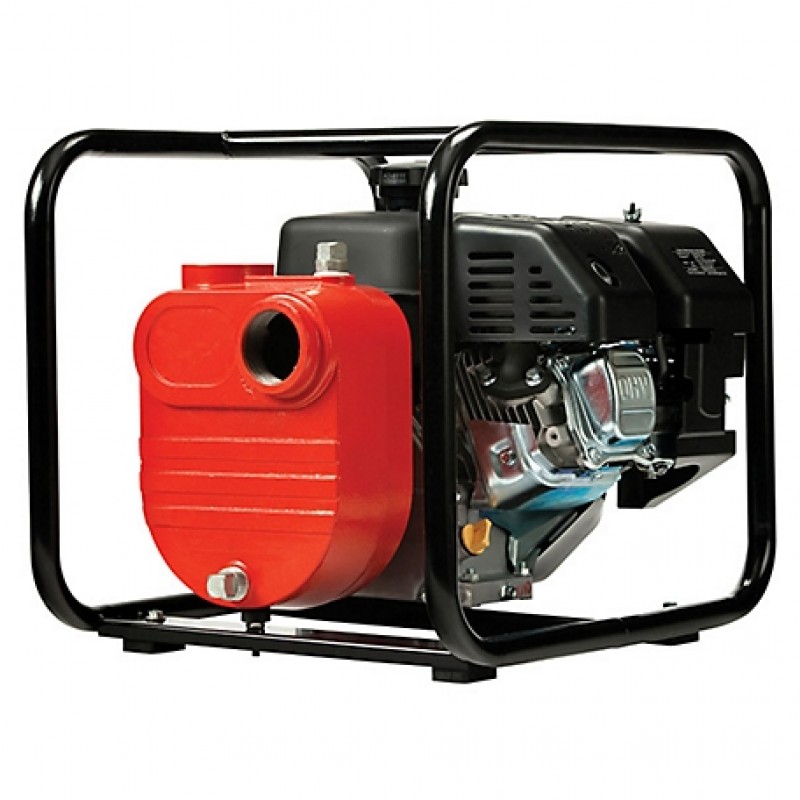

The Red Lion 5RLGF-8KRF Cast-Iron Multipurpose Fertilizer Pump is ideal for liquid transfer, including most agricultural chemicals and general dewatering where rugged portability is important. The utility transfer pump is designed with a strong, stainless-steel shaft sleeve and an EDPM elastomer seal.
- Cast-iron water and Ag chemical utility transfer pump
- Heavy-duty cast-iron pump casing
- Durable cast-iron semi-open type impeller
- Fertilizer pump offers a stainless-steel shaft sleeve and EDPM elastomer seal
- Self priming down to 25 ft.
- Handles most liquid agricultural chemicals
- Handles up to 5/8 in. solid debris
- 2 ft. NPT suction and discharge for convenient hookup
- Powered by a Kohler 3000 series engine
- Includes heavy-duty roll frame
Specifications
| Specification | Description |
|---|---|
| Brand | Red Lion |
| Country of Origin | Imported |
| Amperage | 0 Amp |
| Body Material | Cast iron |
| Compatible Pipe Material | None |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 2 in. |
| Discharge Rate at 0 ft. | 170 GPM |
| Discharge Rate at 10 ft. | 170 GPM |
| Engine Brand | Kohler |
| Engine Displacement | 196cc |
| Features | HD cast iron pump casing; durable cast iron semi-open type impeller; stainless steel shaft sleeve; EDPM elastomer seal; handles up to 5/8" solid debris, handles most liquid agricultural chemicals; easy to prime to 25'. |
| Fuel Capacity | 0.95 US GAL |
| Horsepower | 6.5 HP |
| Hose Diameter | 2 in. |
| Impeller Material | Cast Iron |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 2 in. |
| Maximum Flow Rate | 170 GPM |
| Maximum Head Lift | 95 ft. |
| Maximum Operating Pressure | 41 PSI |
| Maximum Operating Temperature | 140 deg. F |
| Maximum Solids Diameter | 5/8 in. |
| Maximum Suction Lift | 25 ft. |
| Minimum Operating Pressure | 40 deg. F |
| Minimum Operating Temperature | 40 deg. F |
| Oil Capacity | 1 us quart |
| Power Cord Length | 0 ft. |
| Power Type | Gas |
| Product Height | 18 in. |
| Product Length | 21 in. |
| Product Weight | 74 lb. |
| Product Width | 17.5 in. |
| Motor Type | Kohler, Air Cooled, 4 Stroke; OHV (196cc) |
| Utility Pump Type | Transfer utility |
| Voltage | 0 V |
| Warranty | 2 Year |
