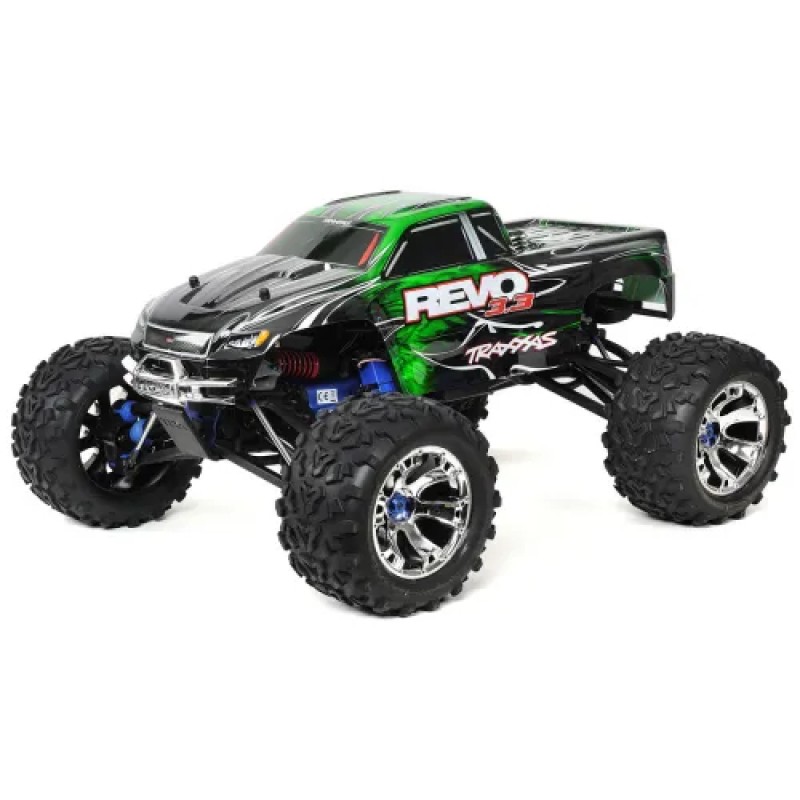

Traxxas Revo 3.3 4WD RTR Nitro Monster Truck w/TQi 2.4Ghz Radio, TSM, Batteries & DC Charger
This
is the Traxxas Revo 3.3 1/10 4WD Nitro Monster Truck RTR with Traxxas
Stability Management. The Revo's specifications are more than just an
impressive list of features. They are each specifically engineered and
integrated into the model to provide capability and convenience that
equates to fun! Revo 3.3's heavy-duty reversing transmission lets you
easily back out of tight spots with the flick of a switch, while the
OptiDrive®Electronic Transmission Control guarantees safe, smooth
engagement every time. Revo engineering makes it the smoothest reversing
system available on any nitro truck.
FEATURES:
- Equipped with Traxxas Stability Management
- TQi 2.4GHz High-Output radio system with Traxxas Link Wireless Module
- TQi 2.4GHz High-Output transmitter
- Traxxas Link Wireless Module stores and loads settings for up to 30 Traxxas Link-enabled models automatically. Easily switch on and drive and "model selection" is not required
- Multi-Function knob
- Steering and throttle percentage adjustable (dual rates)
- Steering and throttle sensitivity adjustable (exponential)
- Steering and throttle end points adjustable
- 13ms frame rate and near-zero latency for responsive control
- Telemetry ready 5-channel micro receiver includes dual channel-1 input
- Traxxas Link Wireless Module compatible with iPhone, iPad, and iPod touch (sold separately) for full Traxxas Link application functionality
- Factory installed speed, RPM, and temperature telemetry sensors
- TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports
- Wide-track body with custom graphics
- 17mm hex Geode chrome mirror
- wheels with pre-glued on 6.3" Maxx-Sized Tires
- 17mm aluminum splined wheel hubs and nuts
- Large capacity 150cc fuel tank
- Hard-anodized PTFE-coated GTR shocks with TiN shock shafts
- High flow dual-stage air filter
- Installed progressive 2 long travel rockers
- Dual 2075 digital high-torque, ball bearing steering servos deliver 250 oz-in & 0.16-sec transit time
- Blue-anodized chassis and chassis brace
- Receiver box includes 5-cell flat rechargeable RX pack
- Heavy-duty reversing OptiDrive transmission
- Two-speed forward and reverse transmission
- Low rotating mass provides quick high-revving acceleration
- Constant drive engagement is instantly responsive and smooth
- Sealed case protects gears and two-speed from debris
- Front disc brake with large diameter
- Polished Resonator dual chamber tuned pipe
- TRX 3.3 Racing Engine
- Bigger piston and sleeve delivers extreme power
- Slide carburetor
- Knife-edged connecting rod
- Large aluminum blue-anodized cooling head
- Super-light piston and rod
- High-performance ball bearings
- Traxxas Lifetime Engine Replacement Plan.
- 45+mph top speed
- EZ-Start push-button electric starting.
- Torque-Control slipper clutch
- Sealed limited slip front and rear differentials
- Super-duty sealed driveshafts
- Sealed pivot ball suspension
- Rubber-sealed ball bearings
- Hex hardware
- ProGraphix® body graphics
SPECIFICATIONS:
Length: 20.65" (525mm)
Front Track: 17.5" (444.5mm)
Rear Track: 17.6" (447mm)
Weight (no fuel): 10.3lbs (4.69kg)
Center Ground Clearance: 4.25" (108mm)
Height (overall): 11.024" (280mm)
Wheelbase: 13.7" (348mm)
Front Shock Length: GTR™ Aluminum 3.43" (87mm)
Rear Shock Length: GTR™ Aluminum 3.43" (87mm)
Front and Rear Tires: Maxx-Sized Tires 6.3"x3.8"
Wheel Diameter: 3.8" (97mm)
Suspension: Fully Independent Progressive 2 Rockers
Front and Rear Wheels: Geode™ Mirror-Chrome Wheels with 17mm Splined Hex Hubs
Gear Ratio: (1st Gear) 25.55:1
Gear Ratio: (2nd Gear) 16.31:1
Transmission: OptiDrive® Auto Two-Speed FWD/REV
Differential Type: Bevel Gear, Sealed, Limited Slip
Drive System: Shaft-Driven 4WD
Chassis Type: Extended Chassis, 3mm, 6061-T6 Aluminum
Transmitter: Traxxas TQi™ 2.4GHz radio system with Traxxas Link Wireless Module (3-Channel)
Receiver: Traxxas Stability Management (#6533)
Engine (fuel-powered): TRX® 3.3 Racing Engine w/ EZ-Start®
Brake Type: Steel Disc with semi-metallic pads
Fuel Tank Capacity: 150cc
Top Speed: 45+mph
Skill Level: 4
Includes:
- TQi Radio System with Wireless Link Module and Traxxas Stability Management
- Revo 3.3 RTR Monster Truck with 3.3 Nitro Engine & EZ-Start
- 5-Cell Flat NiMH Receiver Battery
- 6-Cell 7.2V 3000mAh EZ-Start Battery
- 2AMP DC Peak Charger
- Full-Color Owners Manual
- Quality Tools
- Long Travel Rocker & Springs
- Fuel Bottle
- Extra Oiled Air Filters
- Extra Glow Plug
- Suspension Components
Needed to Complete
- Nitro Fuel
- (4) "AA" Batteries (for transmitter)
