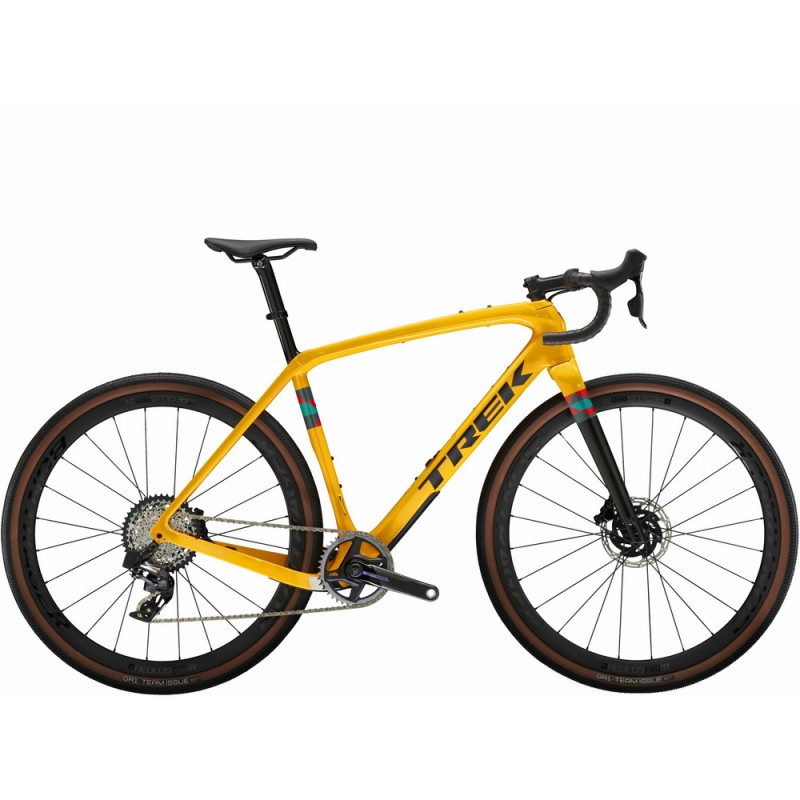

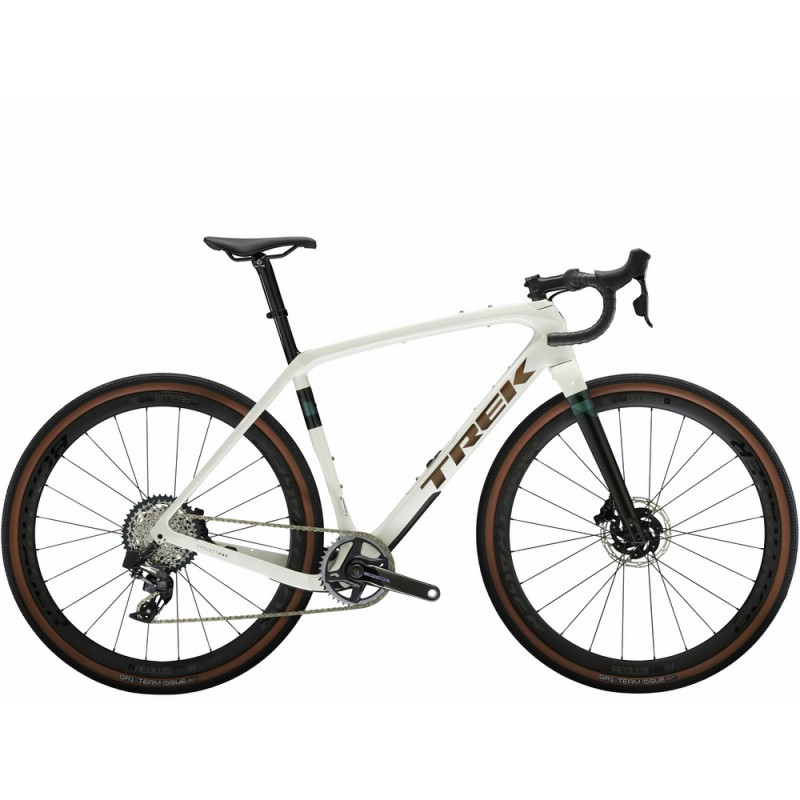

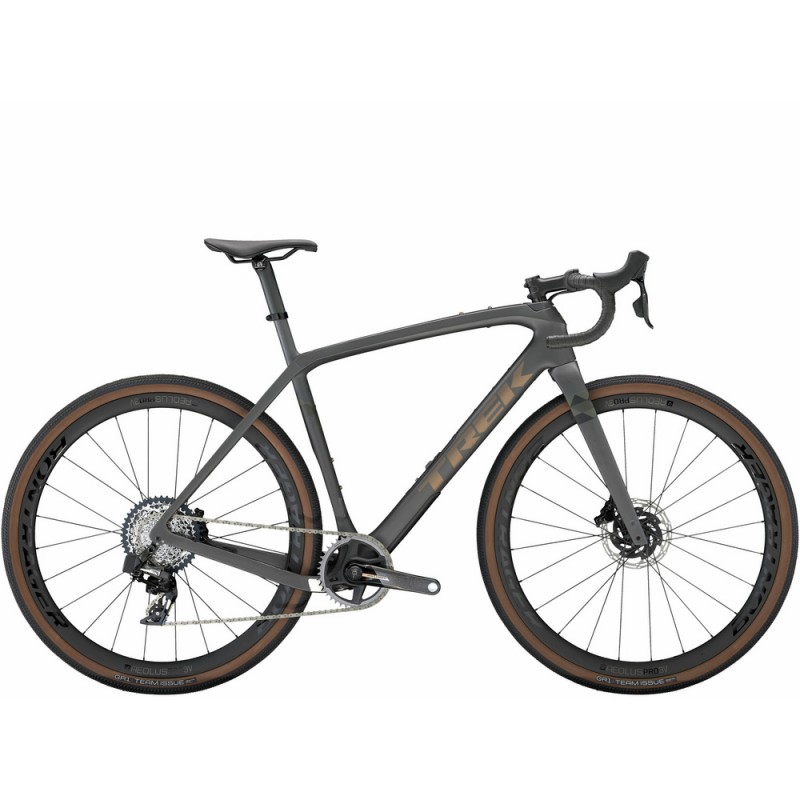

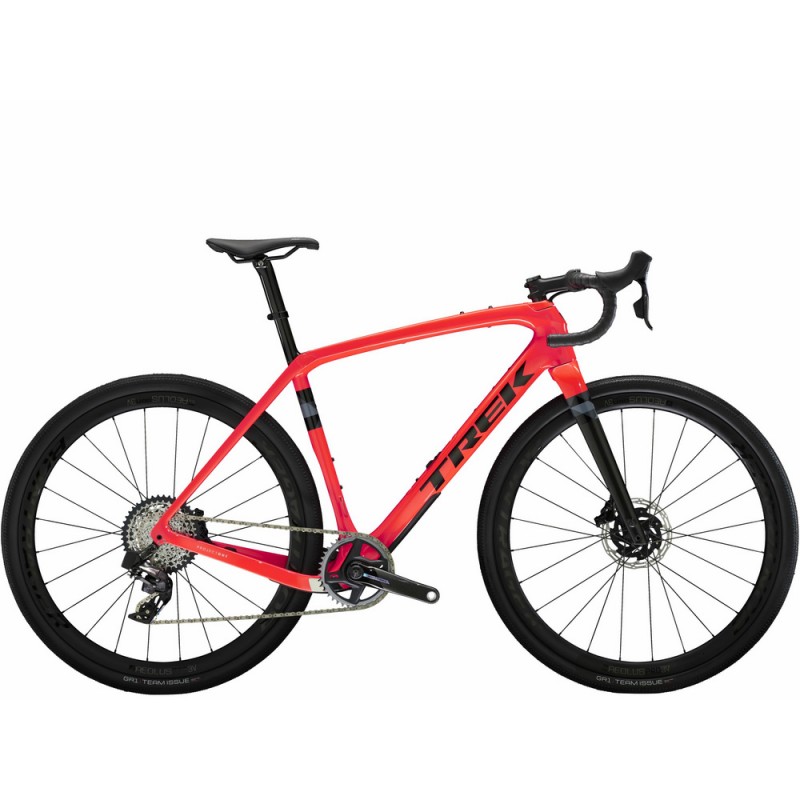

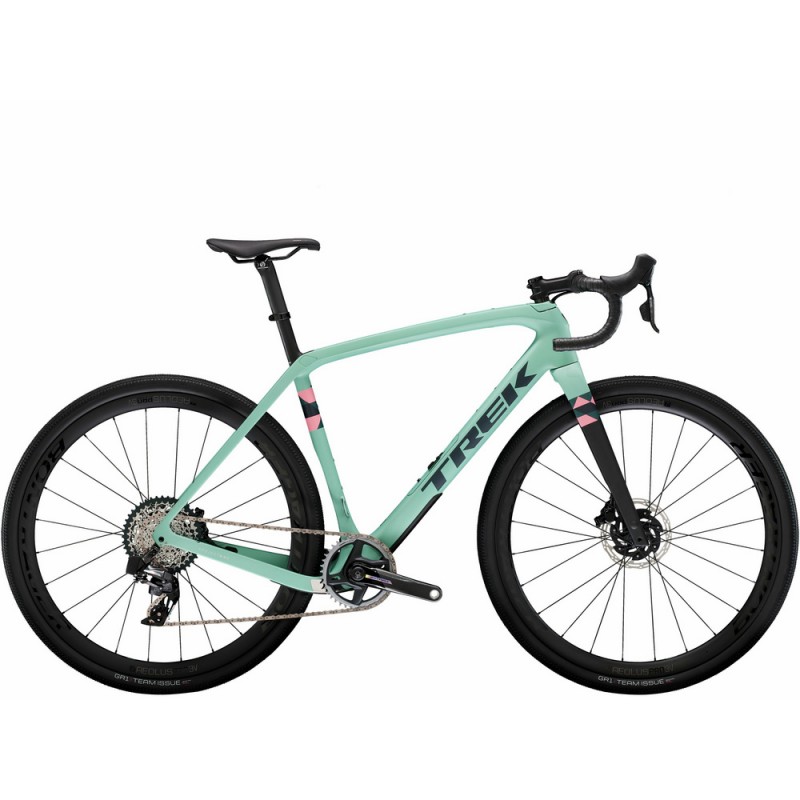

Checkpoint SLR 7 AXS is a high-end carbon gravel bike that's built for
crushing the world's greatest gravel races. The lightweight 700 Series
OCLV Carbon frame has gravel-smoothing IsoSpeed and a nimble yet stable
progressive geometry capable of handling the gnarliest gravel rides.
Plus, a smart and smooth SRAM Force XPLR AXS D2 wireless electronic
drivetrain for blazing fast shifts, and mounts for gear and accessories.
- The SRAM Force XPLR AXS D2 drivetrain is smart, smooth, and completely wireless
- The controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around
- Massive tire clearance means you can use tires up to 45c for extra traction and stability in any condition
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear
- Integrated frame bag mounts and fender mounts make it easy to carry gear and water
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Checkpoint carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle |
| Stem | Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length |
| Chain | SRAM Force, 12 speed |
| Frame | 700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle |
| Tires | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40mm |
| Rotors | SRAM CenterLine X, centerlock, round edge, 160mm |
| Saddle |
Bontrager Verse Short Elite, hollow stainless steel rails, 145mm width Verse Short Elite, hollow magnesium rails, 145mm width |
| Wheels |
Front: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru-axle Rear: Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 142x12mm thru-axle |
| Crankset | SRAM Force 1 AXS D2 w/ power meter, 40T, DUB, 172.5mm length |
| Seatpost | Bontrager carbon seatmast cap, 5mm offset, tall length |
| Shifters | SRAM Force AXS D2, 12 speed // SRAM Force AXS D2, 12 speed |
| Handlebars | Bontrager Pro IsoCore VR-SF, 44cm |
| Tape/Grips | Bontrager Supertack Perf tape |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Rear Derailleur | SRAM Force XPLR AXS D2, 44T max cog |
| Accessories & Extras |
SRAM eTap battery pack (with charger) Bontrager BITS Internal Frame Storage Bag |
| Cassette/Freewheel | SRAM XG-1271, 10-44, 12 speed |
Available Options
- Brand: Trek
- Product Code: KGV-544
- Availability: In Stock
- Condition: New
- Shipping From: Cirebon, Indonesia
- Verified Secure Checkout via PayPal
